This project was a birthday present for my dad. I saw nixie tube clocks online and decided I wanted to build one from scratch. Before this project I had barely soldered anything, never used a transistor, and never designed a PCB. This was a huge undertaking and actually took about 2 years total. The time is automatically set by a GPS module on the bottom of the board. Initially I practiced home etching PCBs until finally leveling up to ordering them from chinese fab houses.

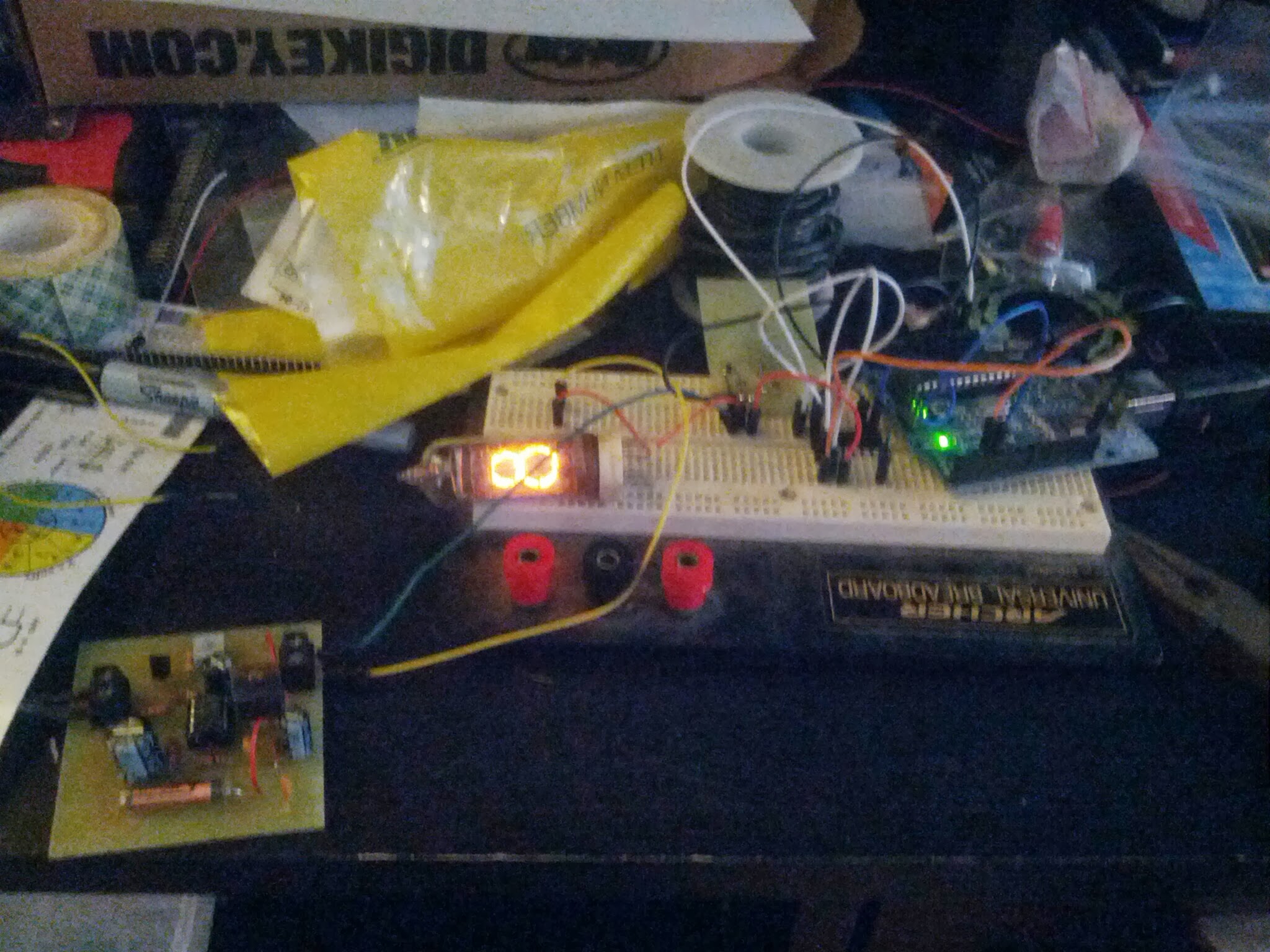

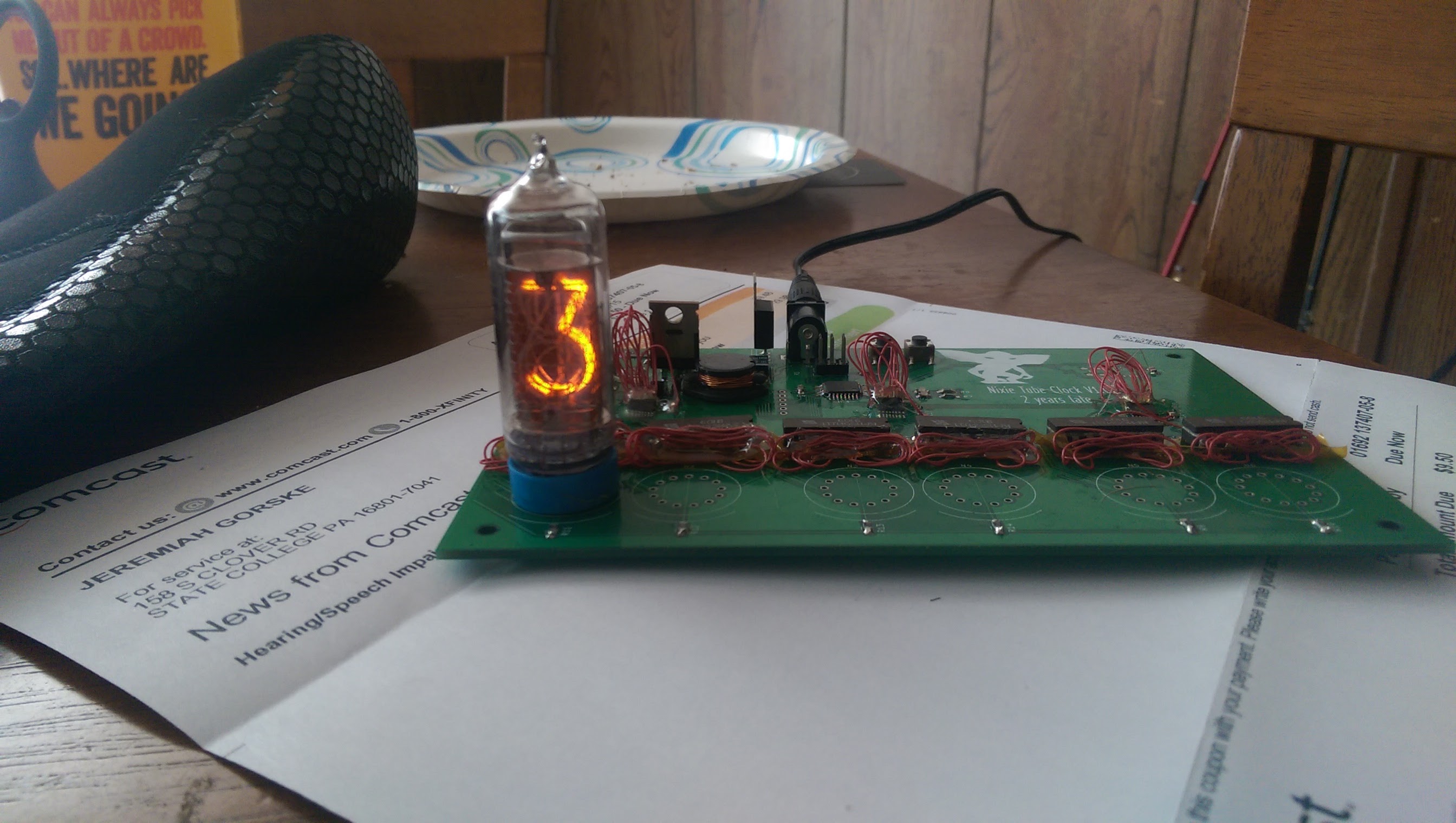

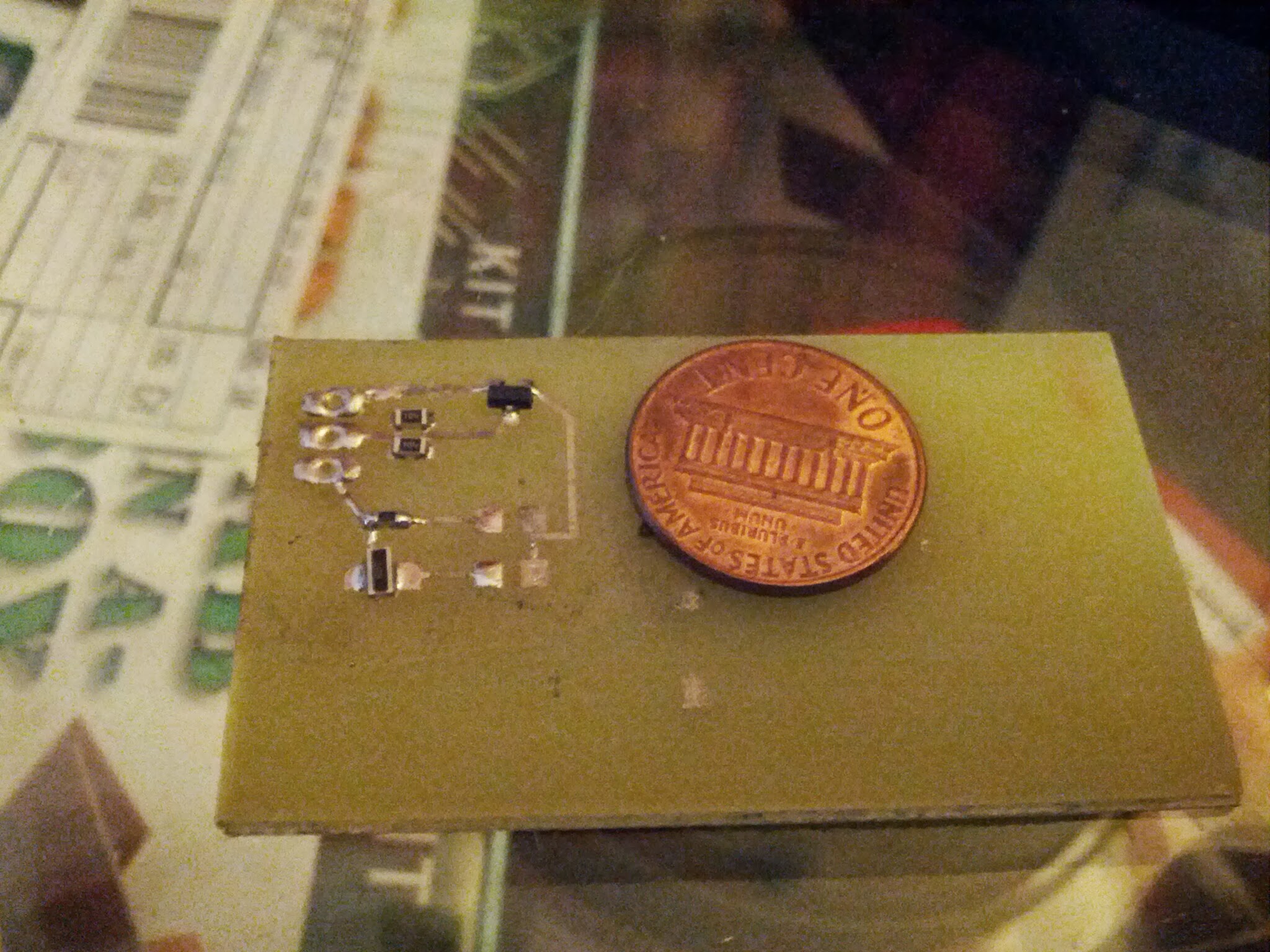

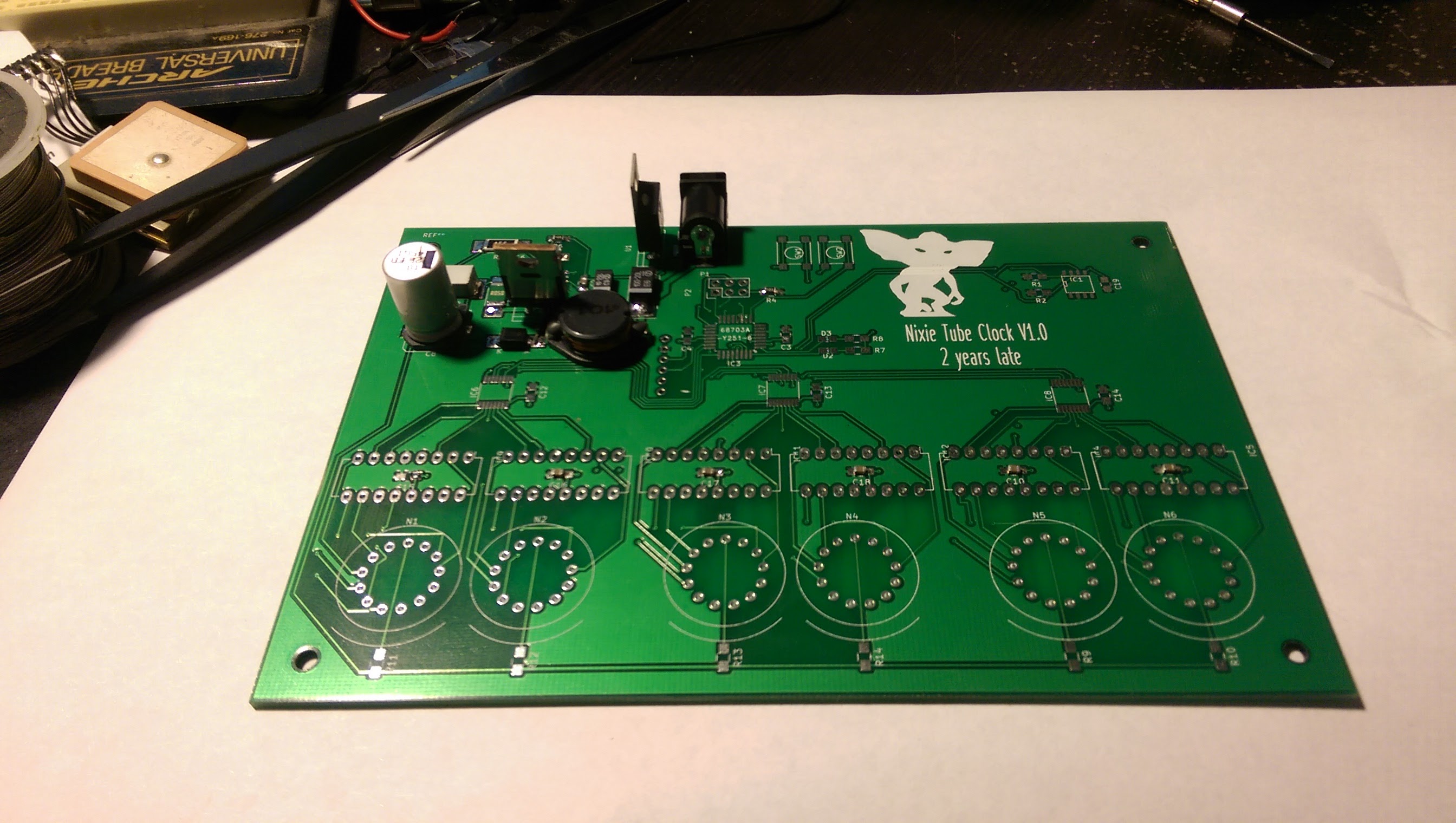

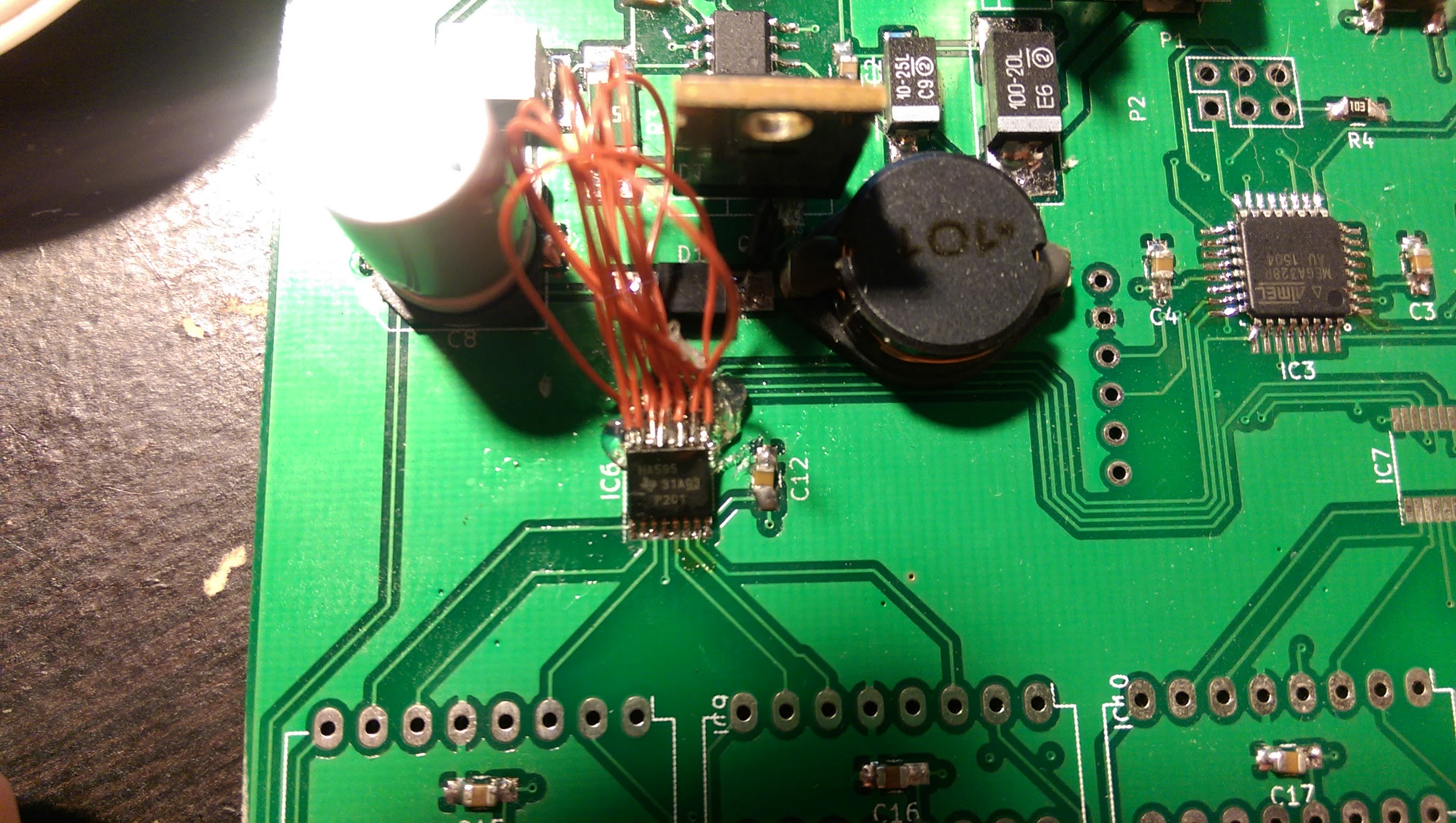

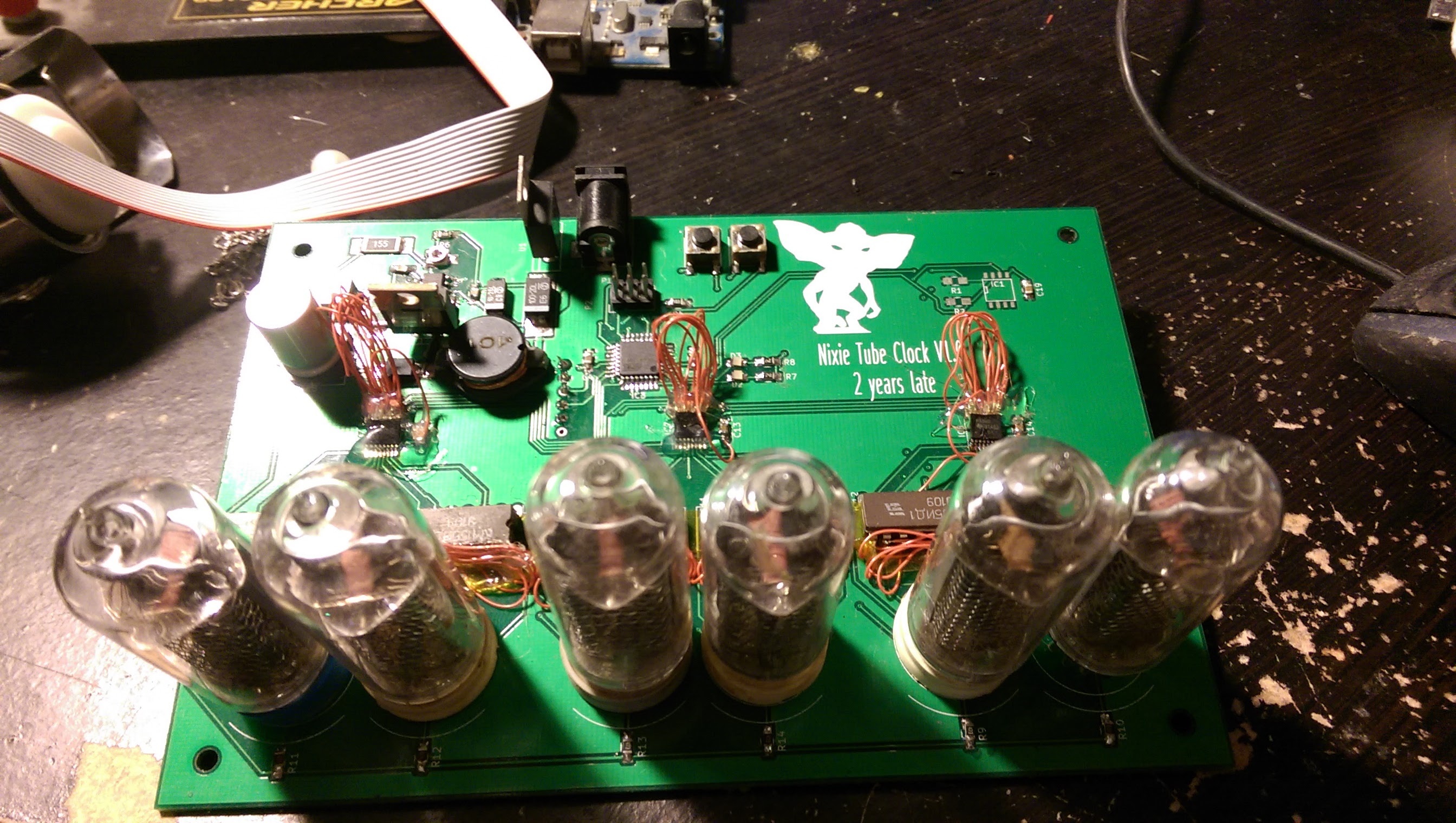

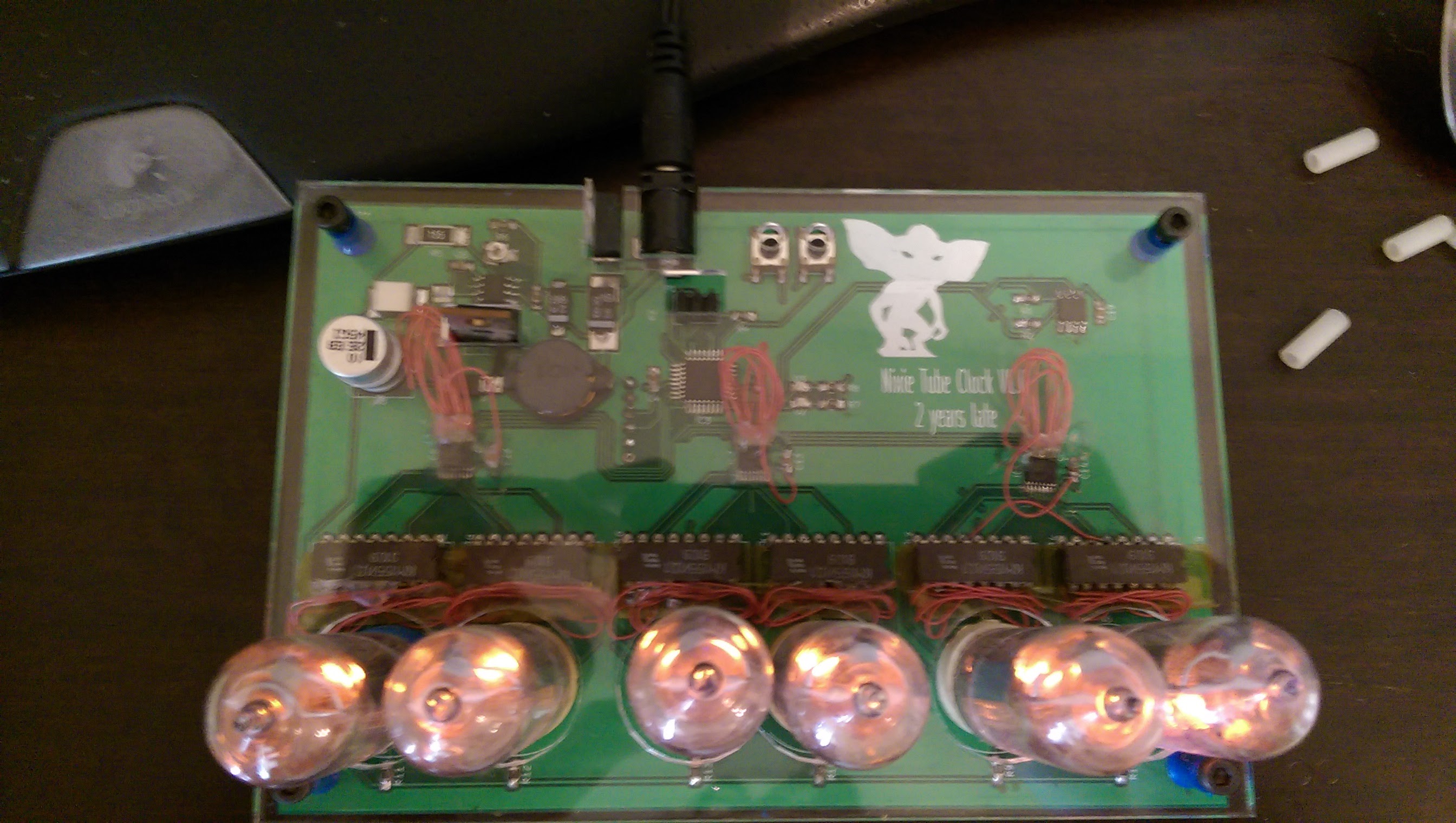

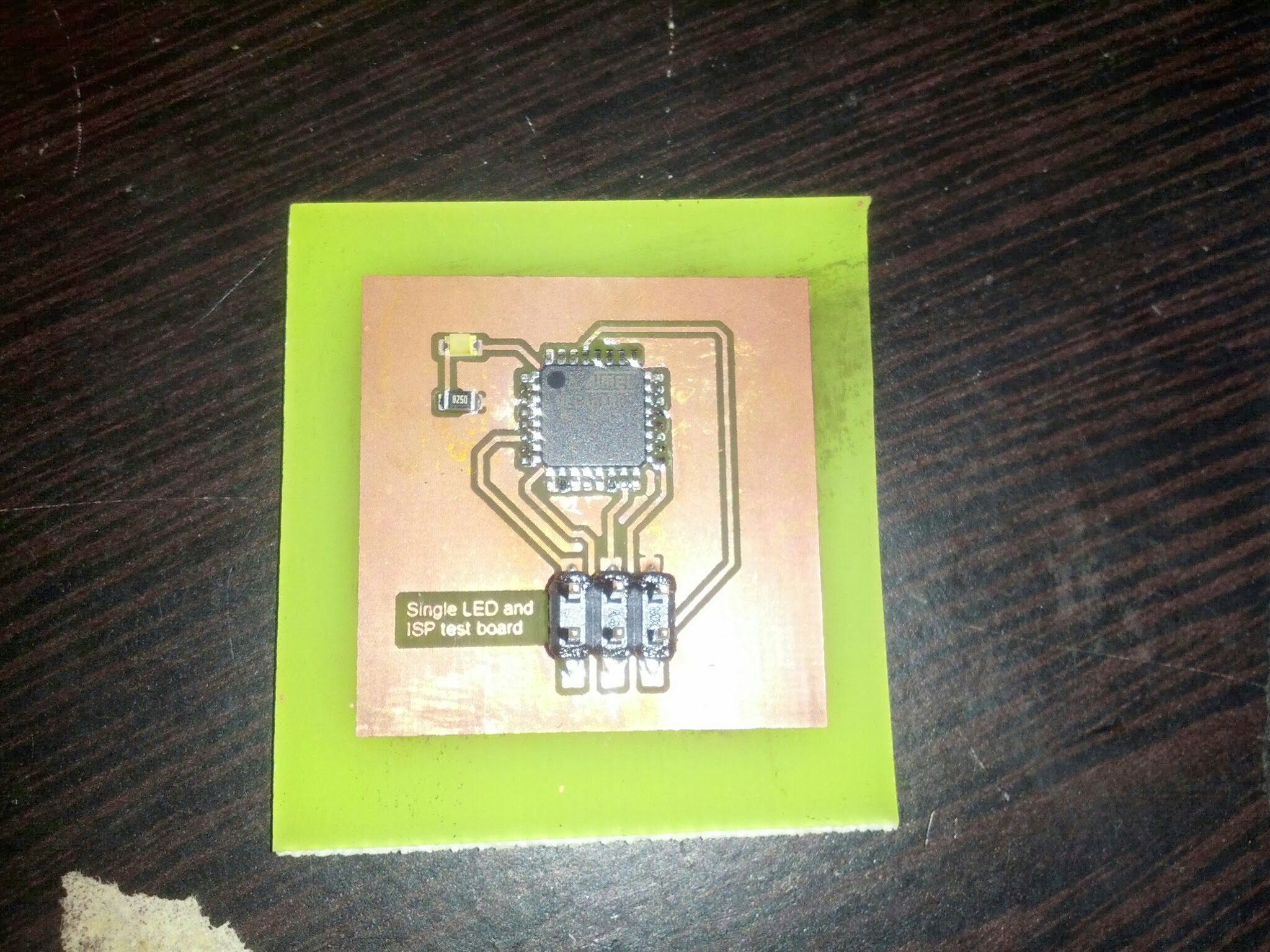

A look at the code is below the gallery.
This file contains bidirectional Unicode text that may be interpreted or compiled differently than what appears below. To review, open the file in an editor that reveals hidden Unicode characters.
Learn more about bidirectional Unicode characters
#include "Wire.h" | |
#define DS3231_I2C_ADDRESS 0x68 | |
//_______________________________________________________________________________________________ | |
//Begin Define all the pins | |
#define serData 14 //PC0 A0=14 | |
#define serClk 15 //PC1 A1=15 | |
#define serRClk 16 //PC2 A2=16 | |
#define led1 2 //PD2 | |
#define led2 3 //PD3, part D3 used to flag fake GPS time | |
#define button1 4 //portD, left button | |
#define button2 5 //portD, right button | |
#define supplyShtdn 7 //PD7 activates high voltage supply | |
//End Define all the pins | |
//_______________________________________________________________________________________________ | |
//Serial comm related variables | |
#define serialBufferLength 80 | |
uint8_t receivedByte; | |
uint8_t serialReceiveBuffer[serialBufferLength]; | |
uint8_t serialReceivePos = 0; | |
uint8_t processReceivedByte = 0; | |
//my old way of storing time data, update this to the newTimeArrayGPS | |
uint8_t GPShourDig1; | |
uint8_t GPShourDig2; | |
uint8_t GPSminuteDig1; | |
uint8_t GPSminuteDig2; | |
uint8_t GPSsecondDig1; | |
uint8_t GPSsecondDig2; | |
//On startup, the GPS sometime spits out a fake time of 23:59:45 and counts up, we need to check for this before utilizing the gps time | |
uint8_t fakeTimeFlag = 1; //on startup, set this to one, and then set it to zero once we start receiving accurate time values | |
uint8_t oldTimeArrayGPS[6] = {2,3,5,9,4,5}; //this stores the previous time | |
uint8_t newTimeArrayGPS[6]; //anytime a new time is grabbed from GPS, put it here | |
//This stores DS3231 time locally. This is time zone adjusted time. | |
uint8_t timeArray3231[6]; //anytime a new time is grabbed from DS3231, put it here | |
//Define the proper shift register output for each digit// | |
uint8_t decadeValues[11] = { | |
0b00000000, //this decodes to digit 0 | |
0b00000001, //this decodes to digit 1 | |
0b00000010, //this decodes to digit 2 | |
0b00000011, //this decodes to digit 3 | |
0b00000100, //this decodes to digit 4 | |
0b00000101, //this decodes to digit 5 | |
0b00000110, //this decodes to digit 6 | |
0b00000111, //this decodes to digit 7 | |
0b00001000, //this decodes to digit 8 | |
0b00001001, //this decodes to digit 9 | |
0b00001111, //this decodes to no digit | |
}; | |
//Define info for button presses | |
uint8_t buttonDebounce = 10; //debounce milliseconds | |
uint8_t button1timer = 0; | |
uint8_t button1prevState = 0; | |
uint8_t button2timer = 0; | |
uint8_t button2prevState = 0; | |
uint8_t timeZone = 0; //hour adjustment for timezone | |
uint8_t militaryTime = 1; //switch between 12 and 24h format. 24h format default | |
//_______________________________________________________________________________________________ | |
//BEGIN SETUP AND MAIN LOOP | |
void setup() { | |
pinMode(supplyShtdn,OUTPUT); | |
digitalWrite(supplyShtdn,LOW); | |
pinMode(led1,OUTPUT); | |
pinMode(led2,OUTPUT); | |
pinMode(button1,INPUT); | |
digitalWrite(button1,HIGH); | |
pinMode(button2,INPUT); | |
digitalWrite(button2,HIGH); | |
pinMode(serData,OUTPUT); | |
pinMode(serClk,OUTPUT); | |
pinMode(serRClk,OUTPUT); | |
//this displays 0-9 on all digits | |
sendSixDigits(0,0,0,0,0,0); | |
delay(100); | |
sendSixDigits(1,1,1,1,1,1); | |
delay(100); | |
sendSixDigits(2,2,2,2,2,2); | |
delay(100); | |
sendSixDigits(3,3,3,3,3,3); | |
delay(100); | |
sendSixDigits(4,4,4,4,4,4); | |
delay(100); | |
sendSixDigits(5,5,5,5,5,5); | |
delay(100); | |
sendSixDigits(6,6,6,6,6,6); | |
delay(100); | |
sendSixDigits(7,7,7,7,7,7); | |
delay(100); | |
sendSixDigits(8,8,8,8,8,8); | |
delay(100); | |
sendSixDigits(9,9,9,9,9,9); | |
delay(100); | |
sendSixDigits(10,10,10,10,10,10); | |
Serial.begin(4800); | |
Wire.begin(); | |
digitalWrite(led2,HIGH); | |
fakeTimeFlag = 1; | |
} | |
void loop() { | |
//check for GPS stream | |
if(Serial.available()){ | |
receivedByte=Serial.read(); | |
processReceivedByte=1; //Raise serial flag to process the received byte | |
} | |
//decide the gps stream | |
processReceivedByteFn(); | |
//read time off of the RTC | |
readDS3231time(); | |
//Update the nixie digits | |
sendSixDigits(timeArray3231[0],timeArray3231[1],timeArray3231[2],timeArray3231[3],timeArray3231[4],timeArray3231[5]); | |
//check for button presses and interpret them as needed | |
checkButtons(); | |
} | |
//END SETUP AND MAIN LOOP | |
//_______________________________________________________________________________________________ | |
void checkButtons(void){ | |
uint8_t button1State = digitalRead(button1); | |
uint8_t button2State = digitalRead(button2); | |
uint8_t currentMilliS = millis(); | |
if(button1State != button1prevState){ // if button state has changed | |
if((button1prevState == 0) && ( (currentMilliS – button1timer) > buttonDebounce)){ //if button was just let go and the button was held down at least debounce amount of time | |
timeZone = (timeZone + 1) % 24; //adjust time zone | |
} | |
button1timer = currentMilliS; //reset timer for most recent state change | |
button1prevState = button1State; //store state for next loop | |
} | |
if(button2State != button2prevState){ | |
if((button2prevState == 0) && ( (currentMilliS – button2timer) > buttonDebounce)){ | |
if(militaryTime == 0){ | |
militaryTime = 1; | |
} | |
else{ | |
militaryTime = 0; | |
} | |
} | |
button2timer = currentMilliS; | |
button2prevState = button2State; | |
} | |
} | |
uint8_t asciiToBin(uint8_t asciiValue){ //converts ascii to bin, if outside of 0-9 range it returns 10 | |
if((asciiValue >= 0x30) & (asciiValue <= 0x39)){ | |
return (asciiValue – 0x30); | |
} | |
else{ | |
return 10; | |
} | |
} | |
void storeGPSTime(void){ | |
GPShourDig1 = asciiToBin(serialReceiveBuffer[7]); | |
GPShourDig2 = asciiToBin(serialReceiveBuffer[8]); | |
GPSminuteDig1 = asciiToBin(serialReceiveBuffer[9]); | |
GPSminuteDig2 = asciiToBin(serialReceiveBuffer[10]); | |
GPSsecondDig1 = asciiToBin(serialReceiveBuffer[11]); | |
GPSsecondDig2 = asciiToBin(serialReceiveBuffer[12]); | |
newTimeArrayGPS[0] = asciiToBin(serialReceiveBuffer[7]); | |
newTimeArrayGPS[1] = asciiToBin(serialReceiveBuffer[8]); | |
newTimeArrayGPS[2] = asciiToBin(serialReceiveBuffer[9]); | |
newTimeArrayGPS[3] = asciiToBin(serialReceiveBuffer[10]); | |
newTimeArrayGPS[4] = asciiToBin(serialReceiveBuffer[11]); | |
newTimeArrayGPS[5] = asciiToBin(serialReceiveBuffer[12]); | |
} | |
void processReceivedByteFn(void){ | |
if(processReceivedByte==1){ //Check serial flag | |
if(receivedByte==36){ //Check for $ | |
serialReceivePos=0; //reset to position 0 | |
serialReceiveBuffer[serialReceivePos]=receivedByte; //add the $ to pos 0 (unnecessary command) | |
serialReceivePos++; //increment the position | |
processReceivedByte=0; //clear the flag | |
} | |
else{//all other received bytes | |
//add the byte to buffer, then increment the pos, check if the pos is overflowed | |
serialReceiveBuffer[serialReceivePos]=receivedByte; | |
serialReceivePos++; //increment the position | |
if(serialReceivePos==80){ | |
serialReceivePos=79; | |
} | |
if((receivedByte == 0x0D) & (serialReceiveBuffer[3] == 0x47) & (serialReceiveBuffer[4] == 0x47) & (serialReceiveBuffer[5] == 0x41)){//if received byte is carriage return and GPGGA is found, save the time | |
storeGPSTime(); | |
//sendSixDigits(newTimeArrayGPS[0],newTimeArrayGPS[1],newTimeArrayGPS[2],newTimeArrayGPS[3],newTimeArrayGPS[4],newTimeArrayGPS[5]); | |
if(fakeTimeFlag == 1){//this if statement checks for 23:59:45 running time during startup | |
if(checkSecondIncrement(oldTimeArrayGPS,newTimeArrayGPS)){ | |
digitalWrite(led2,HIGH); | |
updateGPSTimeArray(); //update new time array | |
} | |
else{ | |
digitalWrite(led2,LOW); | |
fakeTimeFlag = 0; //clear fake time flag | |
} | |
} | |
else{ //if the fake time flag is cleared, send gps time to ds3231 | |
update3231gps(); | |
} | |
} | |
processReceivedByte=0; //clear the serial flag | |
} | |
} | |
} | |
void flashLED1(uint8_t delayTime){ | |
digitalWrite(led1,HIGH); | |
delay(delayTime); | |
digitalWrite(led1,LOW); | |
} | |
void flashLED2(uint8_t delayTime){ | |
digitalWrite(led2,HIGH); | |
delay(delayTime); | |
digitalWrite(led2,LOW); | |
} | |
uint16_t calcSeconds(uint8_t timeArray[6]){ //convert hour:min:sec array to number of seconds past 00:00:00, ignore the hour to keep the number uint16 or smaller, 1 in 3600 chance of a bug here | |
return (timeArray[2]*10+timeArray[3])*60+(timeArray[4]*10+timeArray[5]); | |
} | |
uint8_t checkSecondIncrement(uint8_t oldArray[6], uint8_t newArray[6]){ //run this during initial startup to make sure GPS is sending accurate time. Look for 23:59:45 and counting. Check if time has incremented by 1 | |
uint16_t oldTimeSecs = calcSeconds(oldArray); //convert old time array to # of seconds | |
uint16_t newTimeSecs = calcSeconds(newArray); //convert new time array to # of seconds | |
//check if they are 1s different | |
return ((newTimeSecs – oldTimeSecs) == 1)||((newTimeSecs == 0) && (oldTimeSecs == 3599)); //case one is simple subtraction and check if difference is 1, case two checks for 00:00 and 59:59 | |
} | |
void updateGPSTimeArray(void){ | |
oldTimeArrayGPS[0] = newTimeArrayGPS[0]; | |
oldTimeArrayGPS[1] = newTimeArrayGPS[1]; | |
oldTimeArrayGPS[2] = newTimeArrayGPS[2]; | |
oldTimeArrayGPS[3] = newTimeArrayGPS[3]; | |
oldTimeArrayGPS[4] = newTimeArrayGPS[4]; | |
oldTimeArrayGPS[5] = newTimeArrayGPS[5]; | |
} | |
void update3231gps(void){ | |
uint8_t gps3231hour = newTimeArrayGPS[0]*10 + newTimeArrayGPS[1]; //add time zone correction here eventually | |
uint8_t gps3231minute = newTimeArrayGPS[2]*10 + newTimeArrayGPS[3]; | |
uint8_t gps3231second = newTimeArrayGPS[4]*10 + newTimeArrayGPS[5]; | |
setDS3231time(gps3231second, gps3231minute, gps3231hour, 1, 1, 1, 1); | |
} | |
void sendSixDigits(uint8_t hour1, uint8_t hour2, uint8_t minute1, uint8_t minute2, uint8_t second1,uint8_t second2){ | |
uint8_t sendThisByte3 = ((decadeValues[second1]<<4)|decadeValues[second2]); | |
uint8_t sendThisByte2 = ((decadeValues[minute1]<<4)|decadeValues[minute2]); | |
uint8_t sendThisByte1 = ((decadeValues[hour1]<<4)|decadeValues[hour2]); | |
for(uint8_t x = 0; x < 8; x += 1){ | |
if((sendThisByte3 >> x) & 0x01){ | |
digitalWrite(serData,HIGH); | |
} | |
else{ | |
digitalWrite(serData,LOW); | |
} | |
digitalWrite(serClk,HIGH); | |
digitalWrite(serClk,LOW); | |
} | |
for(uint8_t x = 0; x < 8; x += 1){ | |
if((sendThisByte2 >> x) & 0x01){ | |
digitalWrite(serData,HIGH); | |
} | |
else{ | |
digitalWrite(serData,LOW); | |
} | |
digitalWrite(serClk,HIGH); | |
digitalWrite(serClk,LOW); | |
} | |
for(uint8_t x = 0; x < 8; x += 1){ | |
if((sendThisByte1 >> x) & 0x01){ | |
digitalWrite(serData,HIGH); | |
} | |
else{ | |
digitalWrite(serData,LOW); | |
} | |
digitalWrite(serClk,HIGH); | |
digitalWrite(serClk,LOW); | |
} | |
digitalWrite(serRClk,HIGH); | |
digitalWrite(serRClk,LOW); | |
} | |
//_______________________________________________________________________________________________ | |
//BEGIN DS3231 functions | |
byte decToBcd(byte val) | |
{ | |
return( (val/10*16) + (val%10) ); | |
} | |
// Convert binary coded decimal to normal decimal numbers | |
byte bcdToDec(byte val) | |
{ | |
return( (val/16*10) + (val%16) ); | |
} | |
void setDS3231time(uint8_t second, uint8_t minute, uint8_t hour, uint8_t dayOfWeek, uint8_t dayOfMonth, uint8_t month, uint8_t year){ | |
// sets time and date data to DS3231 | |
Wire.beginTransmission(DS3231_I2C_ADDRESS); | |
Wire.write(0); // set next input to start at the seconds register | |
Wire.write(decToBcd(second)); // set seconds | |
Wire.write(decToBcd(minute)); // set minutes | |
Wire.write(decToBcd(hour)); // set hours | |
Wire.write(decToBcd(dayOfWeek)); // set day of week (1=Sunday, 7=Saturday) | |
Wire.write(decToBcd(dayOfMonth)); // set date (1 to 31) | |
Wire.write(decToBcd(month)); // set month | |
Wire.write(decToBcd(year)); // set year (0 to 99) | |
Wire.endTransmission(); | |
} | |
void readDS3231time(void){ | |
uint8_t rawSecond; | |
uint8_t rawMinute; | |
uint8_t rawHour; | |
Wire.beginTransmission(DS3231_I2C_ADDRESS); | |
Wire.write(0); // set DS3231 register pointer to 00h | |
Wire.endTransmission(); | |
Wire.requestFrom(DS3231_I2C_ADDRESS, 7); | |
// request seven bytes of data from DS3231 starting from register 00h | |
rawSecond = bcdToDec(Wire.read() & 0x7f); | |
rawMinute = bcdToDec(Wire.read()); | |
rawHour = (bcdToDec(Wire.read() & 0x3f) + timeZone) % 24; //apply time zone adjust | |
//if(rawHour > 24){ | |
// rawHour = rawHour % 24; | |
//} | |
if(militaryTime == 0){ | |
rawHour = rawHour % 12; | |
if(rawHour == 0){ | |
rawHour = 12; | |
} | |
} | |
bcdToDec(Wire.read()); //discard day of week | |
bcdToDec(Wire.read()); //discard day of month | |
bcdToDec(Wire.read()); //discard month | |
bcdToDec(Wire.read()); //discard year | |
timeArray3231[0] = rawHour/10; | |
timeArray3231[1] = rawHour%10; | |
timeArray3231[2] = rawMinute/10; | |
timeArray3231[3] = rawMinute%10; | |
timeArray3231[4] = rawSecond/10; | |
timeArray3231[5] = rawSecond%10; | |
} | |
//END DS3231 functions | |
//_______________________________________________________________________________________________ |
